ARGON PCAP Controller

Patented built-in adaption capability eliminates months of PCAP integration effort

A D Metro’s industry leading ARGON PCAP controller senses and adapts, at the press of a button, to the connected (off-the-shelf) PCAP sensor size, format, orientation and cover glass as well as the characteristics of detected touches and your system’s unique background noise environment. Embedded, patented technology means that no software utilities or firmware updates are needed to get your PCAP touch system running perfectly. PCAP integration has never been so easy.

This high performance PCAP touch screen controller delivers the responsive, zero-force, multi-touch experience that users prefer.
A built-in configuration feature offers adjustment of maximum concurrent touches (and more) – particularly useful for embedded applications. Another built-in feature can report the level of background noise affecting your touch system.

This controller normally communicates directly to the USB HID interface that is built in to most operating systems. By connecting an appropriate cable, this controller can alternatively report touch locations using either an RS-232(3.3V) or I2C interface.

Part Details

Description

CCA-05-102WL-01-K

ARGON Controller compatible with PCAP sensors kit, adaptive, USB or RS-232 interface, multitouch. Includes USB-A cable.

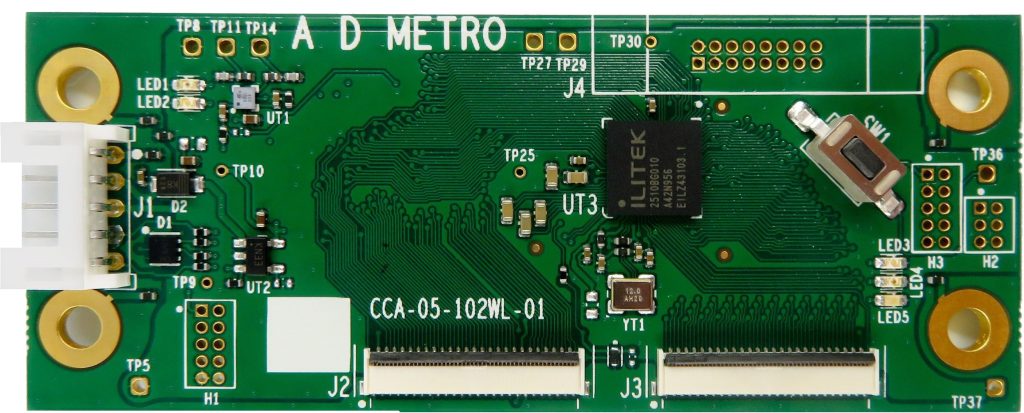

CCA-05-102WL-01

ARGON Controller compatible with PCAP sensors, adaptive, USB or RS-232 interface, multitouch. Does not include USB-A or RS-232 cable.

C-ADP-102W-68WL-01

Adaptor that makes the ARGON controller compatible with virtually any PCAP sensor that has a 68-pin flex tail.

10-CARU-EXT

USB-A Controller Cable, 6 ft (about 2m)

10-CARS-EXT

RS-232 Controller Cable, 1.5 ft (about 0.5m)

Compatible Sensors

Compatible with practically any PCAP sensor having a 2 by 51-pin flex tail. These sensors exist in sizes from 6” to 24”.
Also compatible with practically any PCAP sensor having a 68-pin flex tail (using adaptor C-ADP-102W-68WL-01).

Support

Should you have any questions regarding our products, please do not hesitate to get in touch.

Explore More Product Technologies

Projected Capacitive (PCAP) touch screens offer the user friendly multi-touch experience, associated with smartphones and tablets, operating with very light touch through a highly durable glass surface.
PCAP touch screens with chip-on-flex controllers provide a compact touch solution for smaller sensor sizes, delivering excellent multi-touch experience
A D Metro’s standard Projected Capacitance (PCAP) controllers along with A D Metro’s wide range of PCAP sensors deliver a high-quality, multi-touch solution suitable for a wide range of applications.
